Bilge Hull Repair – There’s a hole in my boat!

Previous owner accidentally ground through the hull into the bilge from the exterior, keel area. When they repaired it, they used a bondo like material which contained talcum powder. Talcum powder absorbs water and expands so not the best choice. Had to grind out the area a bit larger, then fill in with fiberglass.

Used the shop-vac to suck up all the water in the bilge and then used epoxy to fill in the grinder hole with chopped strand fiberglass. Then covered with about 4 layers of fiberglass extending about 6 inches larger than the cutline.

I had to cut out the cabin sole to gain access to the inside of the bilge where I laid down 2 additional coats of fiberglass cloth on the inside of the bilge to complete the repair.

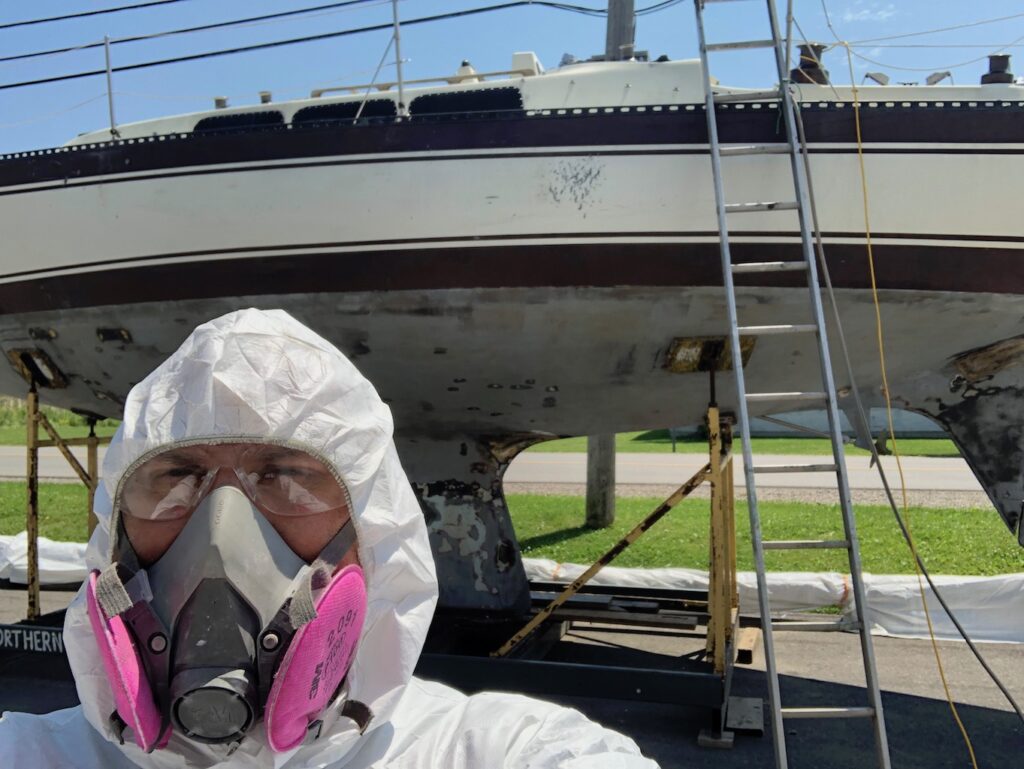

ep6 getting ready to grind out
ep6 getting ready to grind out

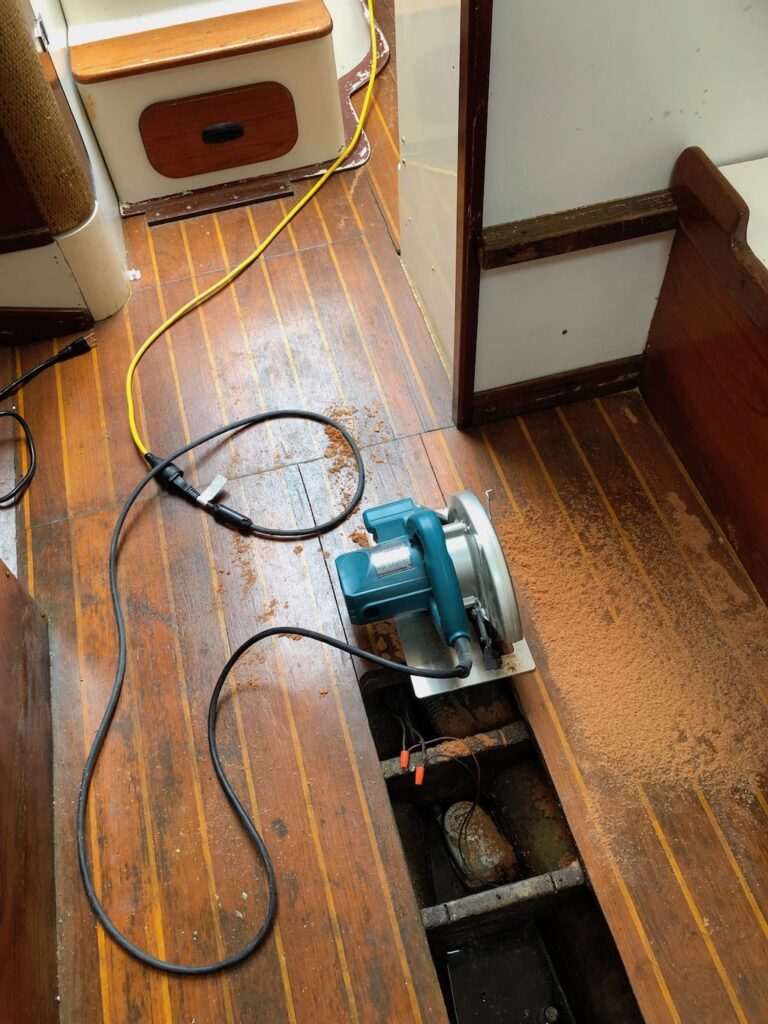

ep6 cutting cabin sole
ep6 cutting cabin sole

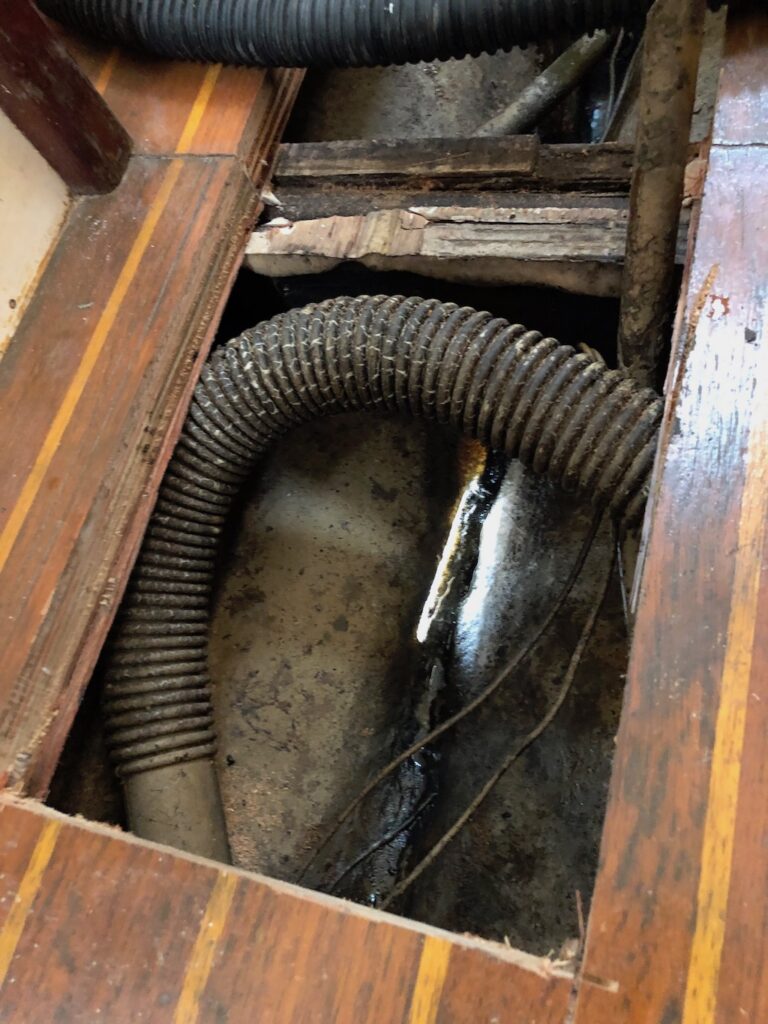

ep6 bilge hole
ep6 bilge hole
